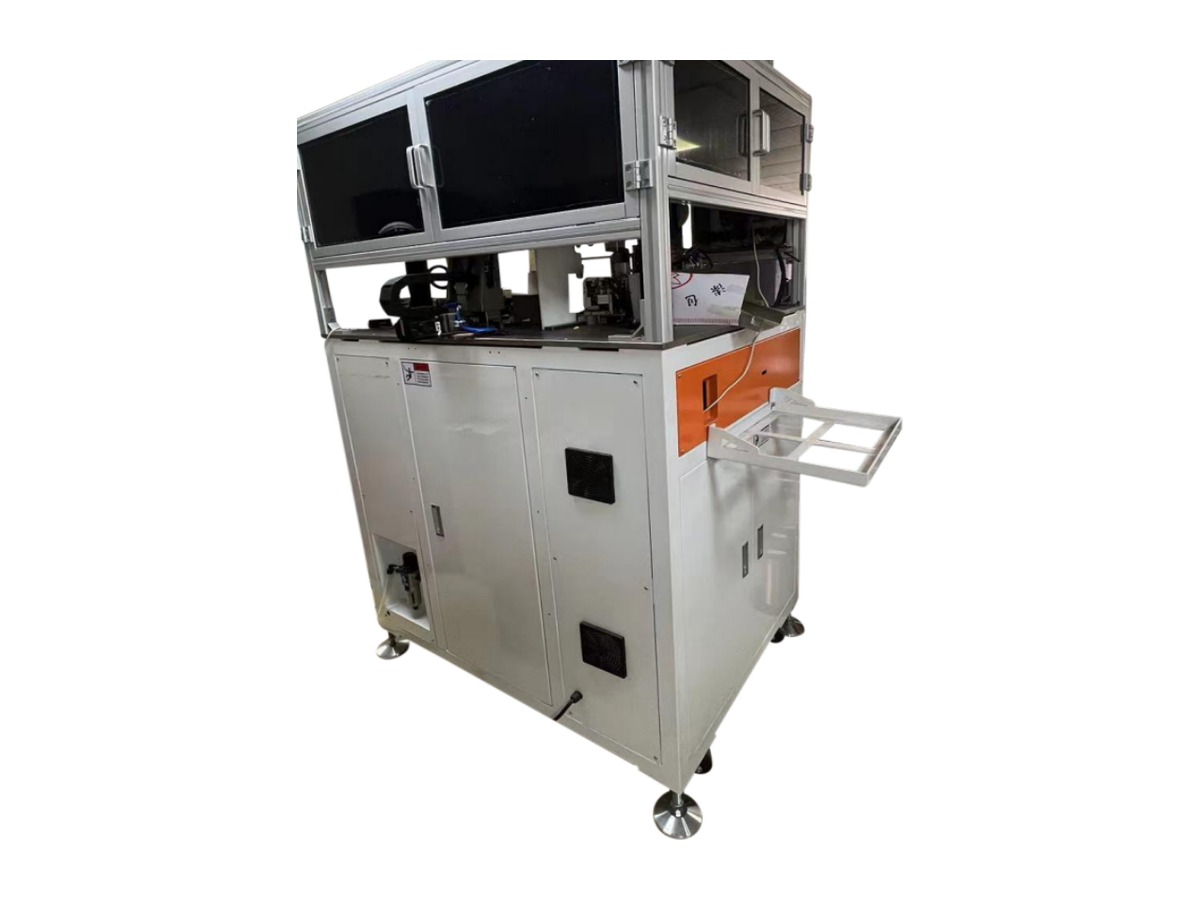

BJT19 Common-mode Large Ring Thick-wire Winding Machine
Jun 16, 2026
Designed for larger common-mode coils with thicker copper wire, offering fast winding while reducing wire damage.
Specifications
4- Efficiency
- 150 pcs/H
- Wire Diameter
- 0.5-2.0 mm
- Core Size Range
- 18107-311913
- Max Wire Length
- 1100 mm
Designed for larger common-mode coils with thicker copper wire, offering fast winding while reducing wire damage.
Used for large magnetic rings and thick-wire common-mode coil winding.
- Prioritized for large-ring and thick-wire common-mode products with strict wire-damage requirements.
Selection and Application Notes
BJT19 Common-mode Large Ring Thick-wire Winding Machine can be evaluated by sample structure, core size, wire diameter, target throughput and downstream process requirements.
Typical Application
Suitable for products scenarios, with selection based on product parameters and process goals.
Recommended Inputs Before Inquiry
- Sample photo or physical sample
- Core specification/model
- Wire diameter, length and turns
- Target throughput and downstream process needs
Key Specification References
- Efficiency
- 150 pcs/H
- Wire Diameter
- 0.5-2.0 mm
- Core Size Range
- 18107-311913
- Max Wire Length
- 1100 mm
BJT19
Brochure-based Selection Data
Designed for larger common-mode coils with thicker copper wire, offering fast winding while reducing wire damage.
Bangjin brochure page 12 / Brochure data complete
Application
Used for large magnetic rings and thick-wire common-mode coil winding.
Suitable Products
- Large-ring common-mode coils
- Thick-wire magnetic ring inductors
Covered Processes
- Thick-wire winding
- Large ring winding
Recommended Inquiry Inputs
- Core outer diameter and thickness
- Whether the wire diameter approaches the upper limit
- Wire-damage requirements after winding
Selection Notes
- Prioritized for large-ring and thick-wire common-mode products with strict wire-damage requirements.
Sample-based Parameters
- Sample photo, physical sample or finished-product drawing
- Core specification, outer diameter, inner diameter and thickness
- Wire diameter, wire length, turns and winding method
- Target throughput, yield target and current manual process
Process Flow
- 1. Large-ring thick-wire sample review
- 2. Wire-damage requirement confirmation
- 3. Automatic thick-wire common-mode winding
- 4. Acceptance by throughput and appearance consistency
Key Specification References
- Efficiency
- 150 pcs/H
- Wire Diameter
- 0.5-2.0 mm
- Core Size Range
- 18107-311913
- Max Wire Length
- 1100 mm
Compatible Machines
This model is mainly used as a standalone machine. Process combinations can still be evaluated by sample.
Inquiry by Sample Parameters
If sample, core, wire or downstream process is not fully confirmed, use the selection guide before submitting an inquiry.
FAQ
What products is BJT19 Common-mode Large Ring Thick-wire Winding Machine suitable for?
Suitability depends on core size, wire diameter, wire length, turns and winding method. Sample photos or drawings are recommended for evaluation.
What parameters are needed before quotation?
Please provide sample photos or parts, core specification, wire diameter, wire length, turns, target throughput and downstream process needs.
Do you support custom automation?
Yes. Machine planning can be adjusted by product range, fixtures, feeding method, target cycle time and site requirements.
Can it be combined with other process machines?
Yes. Winding, soldering, board threading, foot hanging and sleeving equipment can be combined into single-machine or multi-process automation plans.
