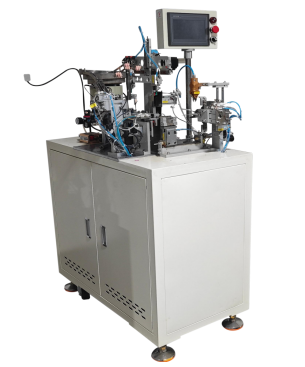

BJT06 Differential-mode Inductor Winding Machine
16 thg 6, 2026
A mature automatic winding machine for differential-mode magnetic ring inductors, using a hook-needle winding structure.
Thông số kỹ thuật
4- Efficiency
- 100-130 pcs/H
- Wire Diameter
- 0.5-1.1 mm
- Core Size Range
- 653-23147
- Max Wire Length
- 1150 mm
A mature automatic winding machine for differential-mode magnetic ring inductors, using a hook-needle winding structure.
Suitable for differential-mode magnetic ring winding, foot forming and cutting.
Suitable products: Differential-mode magnetic ring inductors; Toroidal coils requiring stable manual-work replacement.
Process combination: Winding / Foot forming / Foot cutting.
FAQ
What products is BJT06 Differential-mode Inductor Winding Machine suitable for?
Suitability depends on core size, wire diameter, wire length, turns and winding method. Sample photos or drawings are recommended for evaluation.
What parameters are needed before quotation?
Please provide sample photos or parts, core specification, wire diameter, wire length, turns, target throughput and downstream process needs.
Do you support custom automation?
Yes. Machine planning can be adjusted by product range, fixtures, feeding method, target cycle time and site requirements.
Can it be combined with other process machines?
Yes. Winding, soldering, board threading, foot hanging and sleeving equipment can be combined into single-machine or multi-process automation plans.
